Company Profile

Lube
Contamination Treatment Equip

On-site Lube Management Services

Waste Water Gene Count Testing

Tank Sampling

Properly understanding your fuel condition or contamination levels requires sampling right where the worst contamination can be found – At the tank bottom.

FluidTek has Internationally trained technicians that utilise ATEX II rated sampling equipment to obtain samples in your critical fuel storage tanks that ensure you get the right information when you test the fuel with fuel sample bottles & proper labelling.

Brochure

Visual Testing

A simple yet very useful initial test for fuel purity allowing very quick identification of high levels of particulate or water contamination.

Fuel is checked for clarity, brightness & cloudiness as well as against ASTM Colour Chart.

Particulate Cleanliness Testing

FluidTek have portable onsite particulate cleanliness testing equipment. These units can provide immediate reports with ISO/NAS/SAE standards with extremely accurate results. This ensures that our clients know the exact state of their fuels, with comparisons provided against Global & SNI standards.

This information allows us to provide targeted guidance on particulate contamination mitigation strategies to get the fuel back to being ready for safe & reliable use.

Water RH % & ppm Test

Quantifies the the amount of water (moisture) as a % of the totally saturated state of the fuel as well as we can provide ppm or total % of water. This is important with the introduction of biodiesel blends, as this water content results in accelerated levels of microbial contamination. This causes sludge to become present in the tank bottom.

Microbial Growth Count

Microbial growth is one of the greatest contamination challenges for stored diesel & biodiesel blends. FluidTek have on-site & real time microbial growth testing systems. Not only do these tests provide normal traffic light indication of microbe infestation, they also give an absolute count. This provides a better understanding of relative traffic light position, as well as trending information. Understanding the microbial level present in fuels (especially biodiesel blends) allows us to work with our clients to develop cost effective strategies to reduce or completely remove this serious fuel cleanliness threat.

Molecular Structure of Fatty Acid Methyl Esther (FAME)

Portable Testing Unit

Test Kits

FAME (biodiesel) Content

On-site & real-time testing for biodiesel % content in fuels. This can provide an understanding of fuel specification as well as if delivered fuels are per their stated FAME % levels. This information can be included with the other tested parameters in a comprehensive report.

Site Contamination Assessment

Site review & contamination risk assessment of fuel storage, transfer infrastructure & systems. Process, infrastructure, equipment & procedures are reviewed via a comprehensive audit process.

FluidTek Internationally trained inspectors assess complete fuel handling of a site or facility operation. Provision of full report including actionable & realistic contamination mitigation recommendations on infrastructure, equipment, procedures & supplier quality review.

Laboratory Testing Services

Through our local partners, we provide fast, comprehensive & accurate KAN accredited laboratory testing services. FluidTek can provide guidance as to only doing the test parameters that are relevant (such as environmental factors) to ensure the test results are all relevant & cost effective.

Online Tank Cleaning Services

Stored diesel fuel tanks (& now with introduction of B30 even fast moving fuel) are almost always going to have water, microbial growth (causing sludge) with high levels of particulate contamination. FluidTek has a safe, fast & cost effective ‘online’ on-site diesel fuel cleaning service, guaranteeing results based on international fuel cleanliness standards (e.g. ISO:4406). Critically, this service can be done while the tanks are on line, ensuring that your emergency genset systems are ready at any time.

Before Cleaning

After Cleaning

Brochure

Case Study

Reference Letter

We can drastically reduce you genset exhaust emissions too! Watch the video!

PureBlue

FPC_100

Safe, professional & cost effective online diesel tank cleaning services providing guaranteed cleanliness levels. The result, site tested & certified fuel cleanliness that you can be certain will ensure your diesel plant & equipment is guaranteed to start & continue to operate properly!

Fuel Sampling Kit

FluidTek supply Koehler ATEX II class rate fuel sampling kits. These kits allow sampling at any level of the tank with complete safety & ease of use.

The units are stainless steel construction & have an earthed cable winder with top & mid level sampling unit as well as bottom sampling (bacon bomb) unit. FluidTek can also provide a Pelican custom carry case for these units.

KolorKut Modified Brochure

Water content test with KolorKut
Modified showing emulsified water

Water Content Testing Paste

Testing fuels, particularly newly supplied fuels, for water content is an extremely important component of a contamination mitigation. Water is the primary catalyst for microbial growth in diesel fuel & it must be very carefully monitored & controlled. FluidTek provides Kolor Kut Modified (biodiesel suitable) dip paste.

FAME Content Testing Kits

FluidTek supply FAME content on site & real time testing kits to allow you to test your fuels to quantify the amount of biodiesel blended with diesel fuel. This easy-to-use test method converts methyl esters in biodiesel blends in free fatty acids then titrates the resulting acids.

The kits are available in 3 different test ranges of 0 – 10%, 0 – 20%, and up to 60%. The kits are designed so that a technician with minimum training can efficiently & accurately run the test.

FAME Check Kit Brochure

Portable FAME (biodiesel) % Analyser

FAME Analyser Brochure

Analyser Testing Accuracy

Portable Biodiesel Analyser

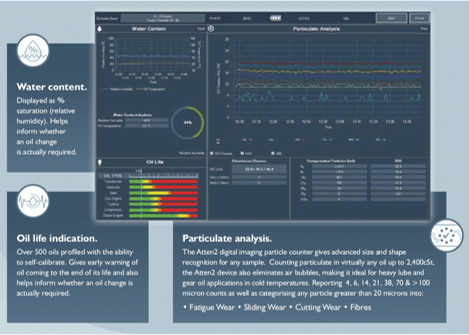

Whether on site or in the laboratory, the Portable Particle Pal FS9V2-RH will provide instant cleanliness readings in ISO, SAE, NAS. Providing ISO:4406 for up to 4, 6, 14 & 21 micron levels for instant comparison to international or national fuel cleanliness standards. This system also includes a relative humidity (RH%) function providing a clear insight into the level of water in the fuels being tested.

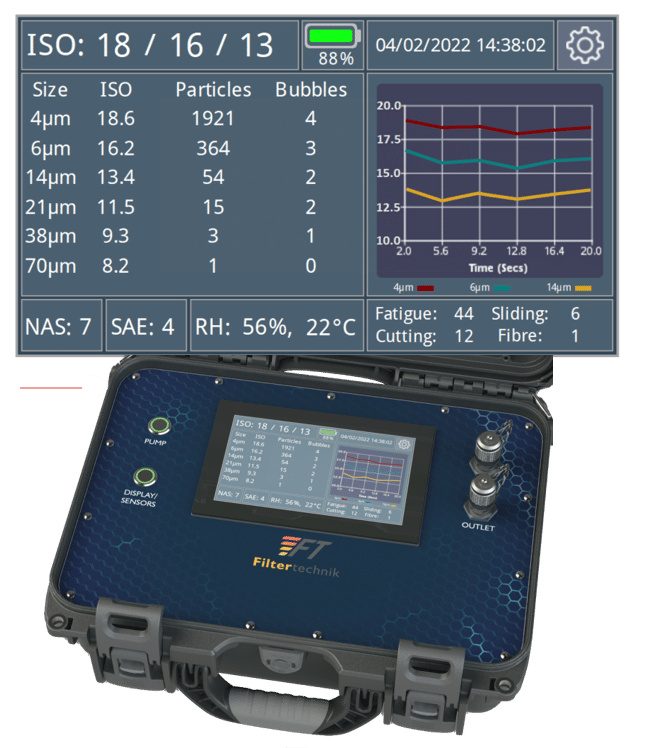

Particle Pal FS9V4 – RH

Portable oil & fuel cleanliness just got much easier.

Our all new Particle Pal Plus utilises state of the art digital imaging particle counting technology to give reliable ISO counts that are not affected by air bubbles. This unit is combined with a water sensor to give you a very good understanding of your fuel contamination levels in ‘real time’. Extremely robust & portable (at only 4.5 kg & 10 hours battery run time) providing exceptional diesel (biodiesel) testing capabilities, but additionally can be used for lubricant testing as well, up to 320 cSt (optionally 2400 cSt).

A self contained system, complete with integral pump & controlled flow rate.

FS9V4 Brochure

Contamination Monitoring Sensor

The Contamination Monitoring Sensor 2 automatically measures & displays particulate contamination, moisture & temperature levels with diesel fuels. It is designed specifically to be mounted directly to systems, where ongoing measurement or analysis is required & where space & costs are limited. It can output particulate results in ISO/NAS/SAE codes & also data logs with a 4000 test results on board result memory. Importantly, the unit operates without any OPEX for accurate data logging, trending information & alerts.

Contamination Monitoring Sensor 2

Fuels & Lubes Test System Brochure

Lumin Ultra Microbial Test Kits

Lumin Ultra’s 2nd Generation ATP®️ microbial monitoring solutions provide on-site & real-time feedback on microbial content. Uncontrolled microbial contamination impacts supply chain & seriously affects operating costs & reliability of diesel plant & equipment. Test kits are easy to use & provide a traffic light reading on contamination & also an absolute microbial growth count to understand trends.

Microbial Test Kits

FluidTek is an approved Indonesian reseller of FUELSTAT fuel testing kits. These kits can help you prevent costly as well as potentially dangerous problems caused by microorganisms that can exist and thrive in fuel. Get the latest immunoassay antibody fuel testing kit to ensure you can control microbial growth contamination.

FUEL TESTING KITS

FUELSTAT® Plus is offered in two different variants for Diesel and Jet Fuel. Both variants are supplied in boxes of 8 and come clearly marked for Aviation (refers to aviation fuel – see Aviation Fuel Testing), or Diesel and come with full instructions in each test.

FUELSTAT ® APP

To support the test kit we provide a free to use App for use with Apple or Android devices which analysis the test results and records reports within the system portal:

Benefits Flyer

FuelStat Brochure

PureBlue RCS Mini Skid

Contamination with diesel in remote sites or stored for long periods is a serious challenge in Indonesia. This has been made much worse with the introduction of biodiesel, which absorbs significant amounts of water causing extremely fast microbial infestation (diesel bug) resulting in particulate contamination (sludge). To get this fuel back to where it can be safely used, you cannot just filter it for particulate only. FluidTek have custom designed the PureBlue range of Recirculation Conditioning Systems (RCS) for challenging Indonesian conditions, to get the absolute best performance from B30 biodiesel (or even higher % blends) with extraordinarily low operating costs

PureBlue Brochure

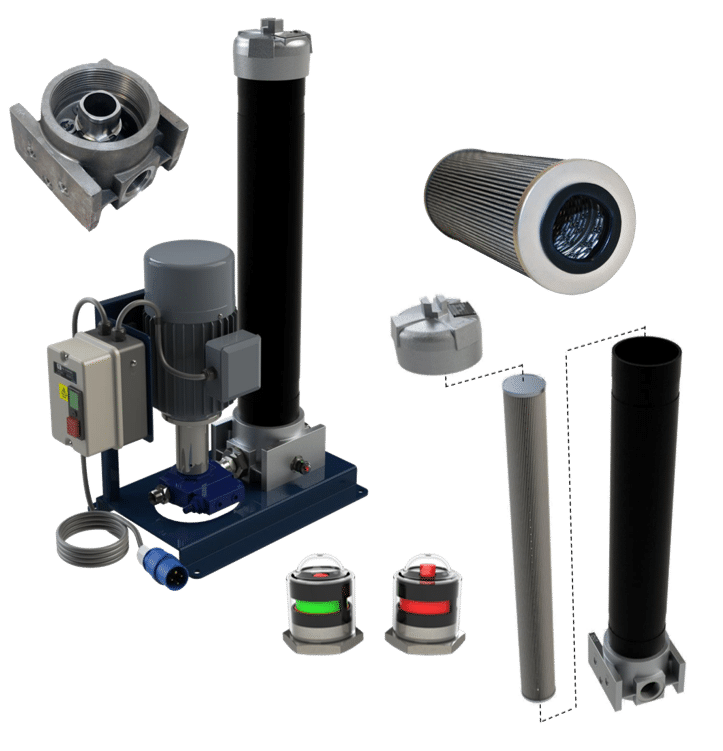

Multi Filter High Flow SS Housings

FUEL TREATMENT PROCESSES!

Stage 1 – Fuel Purifiers (water separators) – RCI (US built & patented) FP units remove over 90% free water & up to 80% particulate via mechanical coalescing & centrifugal processes. Drastically reducing water (less microbes) & filter use (less particulate) – no OPEX!

Stage 2 – PureBlue – Dual Step Particulate Filtration – Stainless steel very cost effective high capacity sock type filter housings combining strength, simplicity & reliability. Pressure differential gauge (level of blockage) indication.

Stage 3 – PFM Blue Treatment

Using photochemistry, PFM units kill & break down microbial growth so resultant particles can pass through a 1 μm filter. Designed, patented & built in New Zealand.

Recirculation – Typical fuel treatment systems are only single pass. PureBlue RCS continually recirculates fuel in tanks to ensure they are clean, dry & microbial growth free & do not suffer from layering out of the biodiesel from the diesel. The system is completely independent & unlike inline filtration, does not slow down the fuel delivery in any way.

PureBlue Fuel Polishing Carts

FluidTek has designed & build our PureBlue Fuel Polishing Cart in Indonesia to suit our challenging fuel quality issues. The PureBlue fuel polishing cart is strong, simple, with 2 high flow options & 1 or 2 stainless steel filter housing options. They use a choice of custom PureBlue particulate filters that are effective, yet extremely low in cost, saving operational expenses. A wide range of different micron sizes & Filtasorb2 water removal filters (up to 6 litre water retention) to properly dry fuel, to stop fuel system damage & prevent microbial growth.

PureBlue FPC Brochure

Vermeer 600 hp Surface
Miner fitted with EM_FCM

PureBlue EM-FCS Brochure

PureBlue EM-FCS

The PureBlue EM-FCS is a downsized version of our larger recirculating conditioning systems that can readily be installed directly on diesel powered plant & equipment, such as gensets, excavators, on or off highway haul trucks, when the fuel being used has quality issues. This is for situations where storage tank treatment to supply equipment is not possible & keeping the fuel clean, dry & microbial growth free is essential. Whilst small in size, it still has the 3 stage fuel conditioning processes of our larger systems. Flow rates of 30 – 350 l/hour)

PureBlue Marine System

PureBlue Marine High Speed Diesel conditioning units are designed specifically for the demanding conditions with marine operations. They have the same 3 Fuel Treatment Processes of our other PureBlue conditioning systems to ensure that the fuel is clean, dry & microbial growth free to maximise propulsion & genset engine reliability. They are built in modular sections with this design suited for a very limited footprint in engine rooms & can be mounted on a wall/bulkhead/tank wall as well as each modular section can be separately mounted & joined by hose/pipe where space is limited. The systems have been carefully designed recognising the marine HSD bunker fuel can be extremely wet & contaminated (high sludge levels) & this can be properly treated by PureBlue Marine System.

PFM Heavy Fuel Oil Brochure

PFM MFO Unit

This PFM unit has all the benefits of the high speed diesel units, but has been specially designed for use with 180 cSt Marine Fuel Oil (MFO). The system needs to be installed in the last & highest temperature heating stage of fuel directly before engine(s). Given this, the system has its own cooling fan to ensure is stays cool. The unit has a flow path that is oblong & significantly flatter than the standard PFM units to ensure that the LED’s light spread can penetrate the thicker grade fuel. The unit will save fuel, engine maintenance costs as well as reduce engine emissions.

PureBlue Fuel Service

If you would like to discuss the option of FluidTek providing a complete service where we manage the condition of your full fuel system, we have got the right solution. This is extremely cost effective & can pay for itself, many, many multiples of its cost.

This can be done as a complete end to end service which makes using biodiesel blends (even B40), worry for your operation. Please contact our specialist team to discuss this uniqe & huge cost saving service?

Hp/WA 0811 871 7492 or sales@fti.co.id

Particulate Cleanliness Testing

FluidTek have portable onsite particulate cleanliness testing units. These units can provide immediate reports with ISO/NAS/SAE standards with extremely accurate results. This ensures that our clients know the exact state of lubricants with comparisons provided against Global & SNI standards. This includes identifying ‘root cause’ with cutting wear, sliding wear, fatigue wear or fibres. This information allows us to provide targeted guidance on low cost particulate contamination mitigation strategies to get the lubricants back to being ready for safe & reliable use.

On-site patch test system analysis for contaminant type & root cause (source)

Water RH % & ppm Test

This site test quantifies the the amount of water (moisture) as a % of the totally saturated state of the lubricant as well as we can provide ppm or total % of water. FluidTek has a number or cost effective solutions to reduce water content.

On-site FT – IR Testing

FluidTek have portable FT Infra Red testing equipment we can use to your site operation & give you nearly everything you get from a laboratory report (with some extra paraments as well). The big difference is our reports are ‘on-site’ & ‘real time’ instead of having the long delay from a laboratory test, introducting a time risk factor for your critical equipment. If we identify a problem, you can take action straight away. Not only do you get the results straight away, they are provided in easy to use Windows based software to allow you to data log, store & analyse them to maximise the benefits of the analysis.

Portable FluidInspectIR® Unit

The ‘on-site’ & ‘real time’ analysis also means

No storage/shipment of samples required
No waiting on laboratory reports
In a software vs. pdf reporting format
Can customise for any alarm levels required

Microbial Growth Count

Microbial growth presents a serious contamination challenge stored and ‘in service’ lubricants. FluidTek have on site & real time microbial growth testing systems. Not only do these tests provide normal traffic light indication of microbe infestation, they also provide absolute count. This feature is extremely beneficial to understanding relative traffic light position as well as trending information,

Understanding the microbial level present in lubricants allows us to work with our clients to develop cost effective strategies to reduce or completely remove this serious fuel cleanliness threat. “If you cannot measure it, you cannot manage it!”

Site Contamination Assessment

Site review & contamination risk assessment of lube storage, transfer infrastructure & systems. Process, infrastructure, equipment & procedures are reviewed via a comprehensive audit process.

FluidTek Internationally trained inspectors assess complete lube handling of a site or facility operation. Provision of full report including actionable & realistic contamination mitigation recommendations on infrastructure, equipment, procedures & supplier quality review.

Laboratory Testing Services

Through our local partners, we provide fast, comprehensive & accurate KAN accredited laboratory testing services for lubricants. This can provide a very in depth analysis to determine ‘root cause’ of oil lubricant properties deteriorating as well as contaminant sources.

FluidTek can provide guidance as to only doing the test parameters that are needed (such as environmental factors) to ensure the test results are all relevant and costs are kept to a realistic minimum.

‘Don’t let an oil problem become a machine problem!’

Condition Based Maintenance

Preventative – Oil Condition Monitoring

Diagnostic – Wear Debris Monitoring

Trident – Online Oil Quality Sensor

The Trident QW3100 is the worlds most advanced online oil quality sensor & is the only online oil quality sensor capable of replacing most periodic oil sampling.

Impedance Spectrum Analysis – provides more information on fluid quality than competing technologies
Integrated Water-in-Oil Sensor – Accurate tracking of water contamination levels
Real-time Continuous Monitoring – Observe & respond to oil problems before they become equipment problems
Enables Condition Based Maintenance – Reduce the need for offline oil sampling & analysis, optimize oil drain intervals

QW3100 Oil Quality Sensor

QW3100 Case Study

Trident QW3100

Trident – Wear Debris Sensor

The Trident DM4500/4600 is the best-in-class inductive wear debris sensor & provides the earliest detection of mechanical failure within an asset.

Inductive Coil Metallic Debris Monitor – Monitor wear levels to determine health in an intuitive manner
Best-in-Class Sensitivity – Detects ferrous particles as small as 40 μm & non-ferrous as small as 150 μm
Real-time Continuous Monitoring – Detect & characterize wear events that may otherwise be missed
Earliest Detection of Mechanical Failure – Detect failure in earliest stages & estimate of remaining useful lubricant life

Trident DM4600 (pump/filter integration)

Trident DM4500 (bypass)

VM4500 Wear
Debris

VM4600 Wear
Debris

Case Study

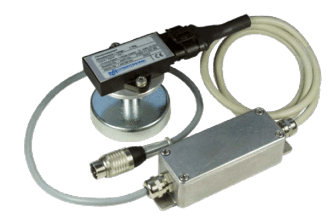

Vibration & Temp. Node

Small module providing 3-Axis MEMS Based Vibration with RMS Velocity, FFT & TWF taken on alarm. Can be mounted & used on mobile equipment

Bluetooth Enabled – Wireless unit for faster & lower cost installation & maintenance
Long Battery Life – Battery life up to 5 years & easy to replace
Real Time Continous Monitoring – Detect asset failures as part of a low cost system
Easy to Install & Use – Several installation options including online data analysis services
Enables Condition Based Maintenance – Reduce the need for one time vibration monitoring cost with trending live monitoring

Vibration Sensor

Case Study

Mounted on bearing housing

CMS 2 – Contamination Monitor

The ICM 2.0 automatically measures & displays particulate contamination, moisture & temperature levels in various lubricants. It is designed specifically to be mounted directly to systems, where ongoing measurement or analysis is required & where space & costs are limited. The unit also data logs with a 4000 test result on board result memory.

ISO 4406, NAS 1638, AS 4059E
ATEX zone II options
8 channel contamination measurement & display
Pressure up to 420 Bar
IP65/67
Free LPA view software (Windows based).
Suitable for most lubricants as well as diesel

Particle Sensor

S120 Digital Particle Counter

The S120 digital imaging particle counter is a revolutionary sensor capable of counting a broad spectrum of particles, recognising shapes & eliminating air bubbles from the counts. Digital imaging particle counting provides engineers with a deeper insight into their lubes. The sensor has the ability to measure a broad spectrum, from 4 to > 100 µm, recognising different shapes of particles that can be grouped into fatigue wear, sliding wear, cutting wear as well as fibres.

The S120 is designed for permanent online monitoring of oil cleanliness. Alternatively, we have a range of portable lube testers with the S120 integrated. Water in Oil option is also available.

S120 Brochure

S120 PM Brochure

S120 Digital Particle Counter & Display

The S120 high technology digital particle counter is now also available with a local display option, giving you the equivalent complete information provided on the Particle Pal FS9V4 unit. Operators can see particle counts, root cause analysis, temperature (optimally RH%) all at their fingertips with a 4.3” LCD touchscreen. This gives unprecedented, on-the-spot insight into the condition of your oil.

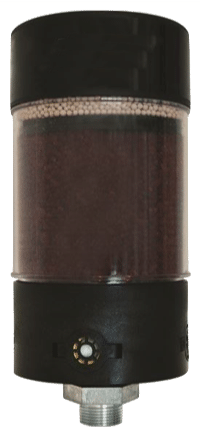

ISO-Logic Breather

Tank breather desiccant degrades at different rates on different applications & locations. Replacements are typically based on time. Some breathers can last a year or more while others, only a few months.

Track Breather RUL – Optimize breather replacement based on breather life & RUL

Detect Humidity Source – Tracks direction of humidity to determine source if water is coming from tank/gearbox or outside

Real-time Continous Monitoring – Identifuy events or environmental conditions impacting water content

Easy to Install & Use – Simple plug & play installation backed by online data analysis services

Enables Condition Based Maintenance – Reduce the need for offline oil sampling and analysis

4 Different Tanks Dessicant Breather Life Comparison

VM1100 Viscosity Sensor

The VM1100 is a viscosity sensor that also combines processing electronic that will directly & simultaneously measure the viscosity, density & temperature of fluids. Relying on tuning fork technology, the sensor monitors the direct relationship between multiple physical properties to determine the viscosity of fluids such as engine oil, fuel, transmission & brake fluid, hydraulic & gear oils, refrigerants & solvents.

This includes in-line monitoring of fluid reservoirs, process lins & pressurized high flow conduits (e.g. engine oil gallery).

Key Features

Rugged construction & suitable high pressure
Long term stability
Corrossion & contamination resistant coating for wetted parts
12 – 24 VDC
CAN J1939 compliant comms. to host controller
On-board processing for real-time data analysis

VM1100 Viscosity Sensor

Applications

On & off highway vehicles
Generators
Compressors
Industrial Equipment
Gas & Wind Turbines

Viscosity Sensor

VM800 Water Sensor

The Trident™ WM800 sensor is a real-time, in-line water-in-oil sensing technology for monitoring water contamination levels in lubricants, hydraulic fluids, and fuels. Water is one of the biggest threats to a lubrication or fuel system. Water contamination in oil promotes oxidation, microbial growth, corrosion, wear, sludging, and foaming. In fuel, water can lead to microbial growth, poor combustion, and ice formation in supply lines or tanks. Minimize the risk of moisture related damage through active monitoring with the TridentTM WM800.

The Trident™ WM800 uses a capacitive relative humidity sensing element with integrated temperature sensor.
By immersing the sensing probe directly into the fluid stream, accurate measurements and fast response time are achieved.

Benefits

Real time moisture in oil/diesel monitoring
Identify contamination events
Trend water contamination
Prevent water induced system damage

VM800 Water Sensor

Water Sensor

Key Features

Directly measure water contamination
Measure temperature
Modbus RTU over RS485 interface
Analog 4-20 mA outputs
Wide input voltage range
Small form factor, lightweight design

Trident FQMS

The Trident is the only all-in-one end-to-end solution capable of monitoring total fluid quality of mining equipment. The Trident FQMS can be expanded with multiple sensor options as part of a true Industrial IoT Solution. Enabling condition based fluid maintance (CBM)

Metallic Debris Monitoring
Oil Quality & Water
Monitoring
Network Gateway Device
Data Logging
Protective NEMA 4 Enclosure
Oil in/out; Power; 2-way comms

FQMS

Case Study Mining
Concentrator

Trident FQMS Configurations

Trident FQMS

Trident AP2200 Edge Device

The AP2200 Edge Device is the perfect data Acquisition Platform for all of your lubricant or other sensors for data consolidation & logging for transmission to any of your reporting centres.

Low-Cost Edge Device – Cost effective way to integrate up to 255 smart sensors, configurable as master, slave & gateway
Flexible Sensor Integration – RS-232, RS-485, CAN/J1039, Bluetooth
Onboard Data Storage – Stores & transmits data in intermittent connectivity, configurable software such as Javascript engine
Flexible Connectivity – Cellular Modem, 10/100 Ethernet, USB, GPS, Wifi
Easy Installation – DIN rail mountable, industrial temperature range, web configurable

Trident AP2200

Trident AP2200 – Edge

Software Specification

RS-485 port
(2) RS-232 ports
(2) CAN bus ports (1 standard)
10/100 Ethernet
USB port
Cellular modem (GPRS, CDMA, HSPA+ optional) GPS (optional)
802.11 b/g/n WIFI (optional)
4GB internal memory (approx. 1 year data logging)

FluidInspectIR® – Inline System

If you want to have an accurate oil analsysis that is equivalent to a laboratory report to give you complete ‘real time’ awareness of your lubricant & equipment condition, FluidInspectIR® is the best possible solution. Using laboratory type FT Infrared technology directly connected to your equipment, you can get:

In situation oil anlaysis – ‘real time’ & every hour
Complete Analysis – virtually everything you get from a laboratory report & many more parameters you don’t get
Complete Reporting Solution – We have a choice of web based reporting systems or data can be integrated into you own system
Completely Customisable Alerts – Can be set on all parameters with multiple thresholds

FluidInspectIR – Inline

IR – Inline Benefits

Literally everything you get in a laboratory report ‘real time’ digitally reported to anywhere it needs to be monitored!

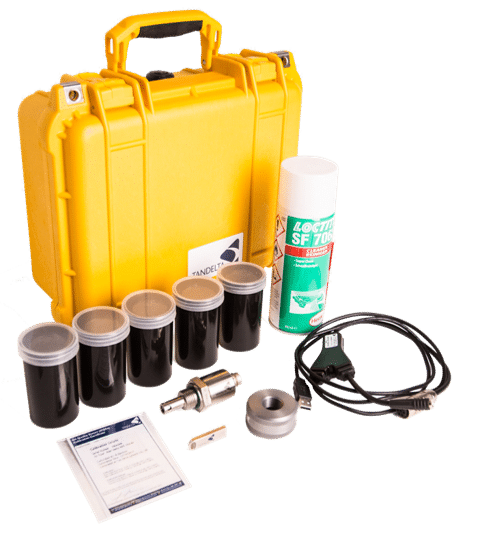

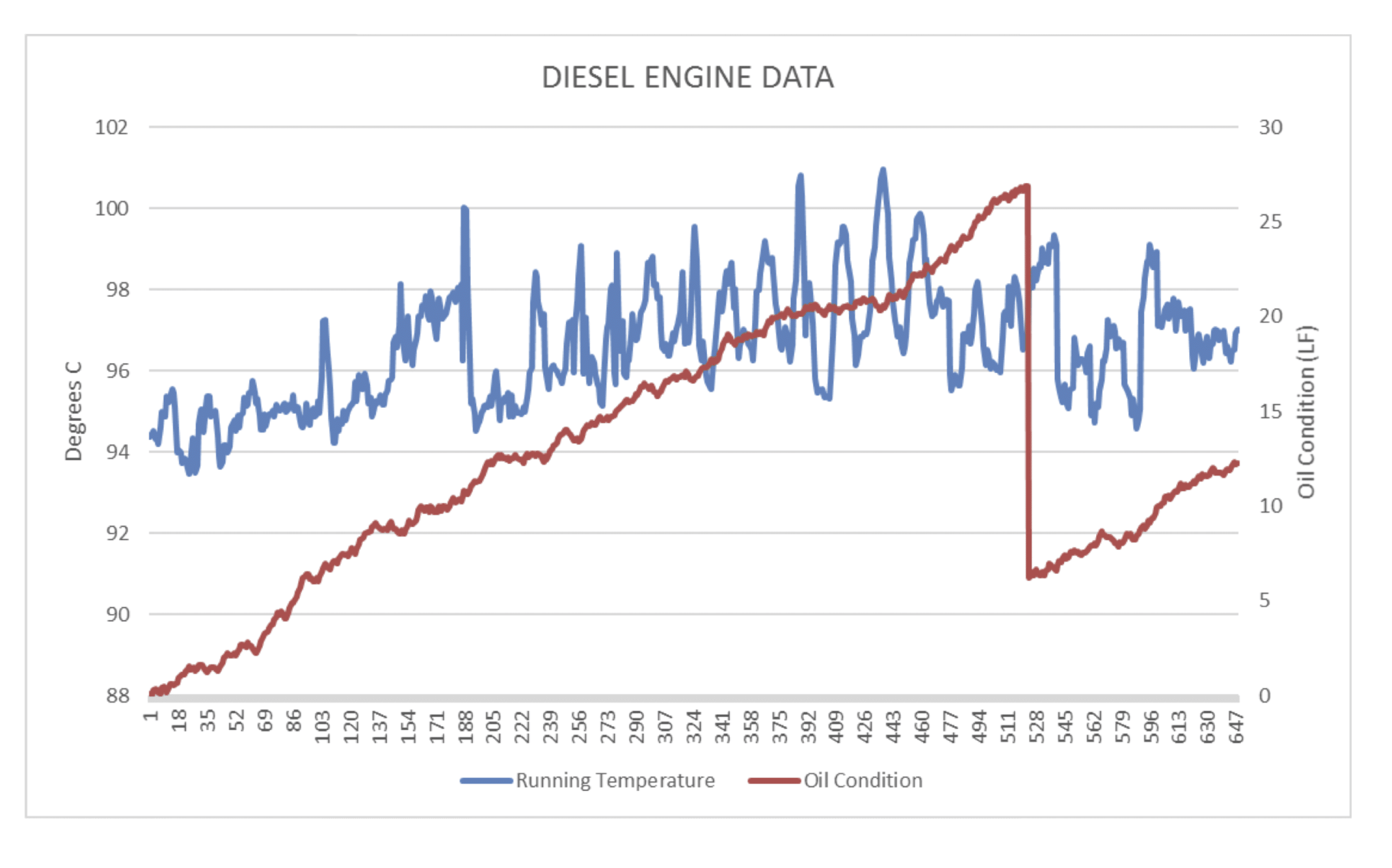

Tan Delta Oil Quality Monitoring

Accurate Real Time Oil Condition Monitoring

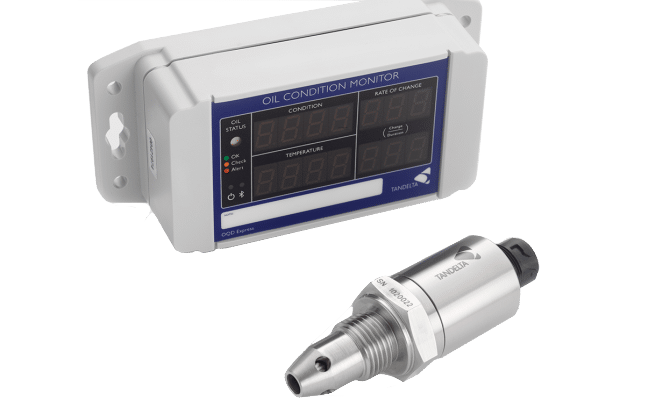

The Oil Quality Sensor (OQSx) is your ideal solution for accurate real time oil condition monitoring. Easily and quickly installed the OQSx detects all wear and contamination elements to an exceptionally high sensitivity level and provides an accurate statement of oil condition second by second – in any oil type and in any application.

Provides in accurate ‘in situation’ & continuous oil monitoring with certified accuracy down to 15 ppm.
Mechanical failure early warning – as low as 0.25 micron
Register any changes that would have a material effect on the lubricating properties of what it is measuring
Data logging with up to 800,000 samples stored on monitor
ATEX options available!

Brochure – Oil Quality
Sensor

Brochure – ATEX Oil Quality Sensor

Oil change that does not go back to ‘clean point’ shows not properly flushed of old oil or new oil is contaminated

Tan Delta blue tooth enabled Mobile App (Android or Apple)

Product Brochure – OQD Express Kit

Case Studies
Summary

Mobile
Data Sheet

Brochure – Oil
Quality Sensor

Brochure – ATEX Oil Quality Sensor

Product Brochure – OQD Express Kit

Case Studies
Summary

Mobile
Data Sheet

FluidTek Condition Mointoring

FluidTek’s custom Condition Monitoring System Software allows machinery operators to clearly monitor their lubricants, fuels & other equipment status. These systems provide ‘in-situation’ & ‘real time’ securely stored data that can be viewed locally or anywhere remotely by operators, management or owners.

Monitoring Solutions

Local with tablet adjacent to equipment being monitored or in operator cabins
Remote (wired, wireless, mobile network) that can run Windows based software
Secure Web based systems with client defined user access & access levels
Partner systems using custom satellite communication (ships)

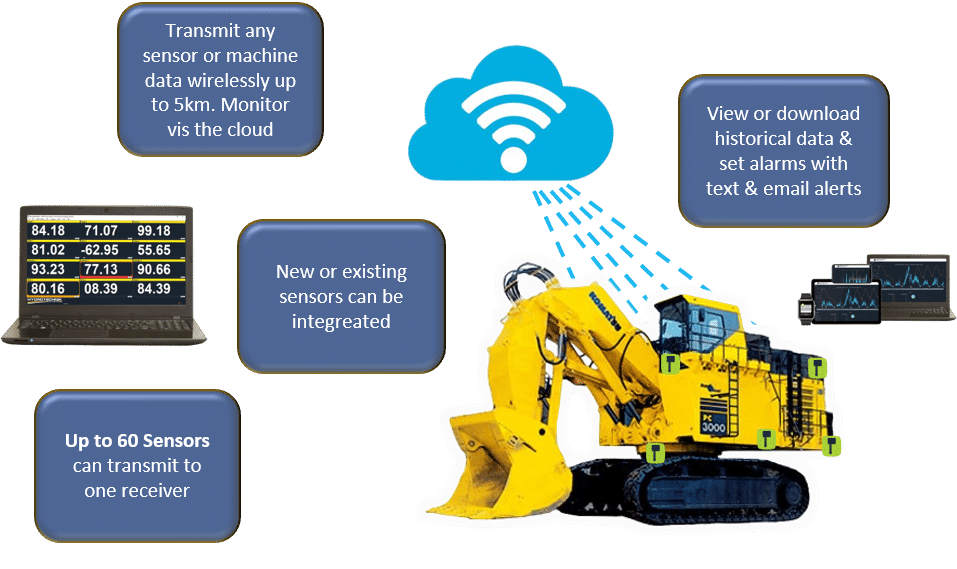

IIOT – Industrial Internet of Things

FluidTek Condition Mointoring

FluidTek’s custom Condition Monitoring System Software allows for exceptional flexibility to use not just our Poseidon suite of sensors, but many other sensors we also supply. Additionally, we can incorporate control or safety inputs, pulsed digital flow meters & any other digital or analogue inputs that are needed to be monitored with the Condition Monitoring System.

Tablet Oil – Quality Sensor

IIOT – Industrial Internet of Things

Monitoring Solutions

Compare Functions Between Equipment Sensors
Overlay Tables or Charts
User defined dashboard settings
Alert settings for all sensors or other control or safety inputs
Specific Alerts can be set on user dashboard
Varying access levels to suit management needs
Complete visibility of equipment fleets & condition & early warning for maintenance or other issues
Can support mobile equipment RFID tags against sensor output

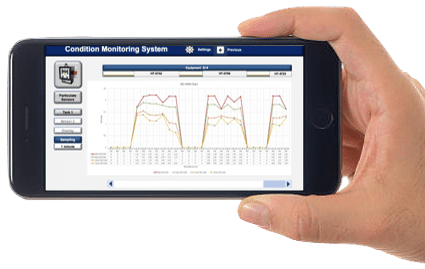

Mobile Application – Particulate Sensor

Condition Monitoring Systems

SkyBlue Marine Monitoring

OPEX only (no investment)
options available!

Skyblue Monitoring System

SkyBlue Marine Monitoring

Our very low cost Satellite service comes together with VOIS (Vessel-Office Integration System) at no extra cost. This brings together all of the critical location & asset data onto one intergrated Web based platform.

Vessel Location & Voyage Data
Speed / Course
Crew Data & Movement
Stores Levels
Predictive Maintenance Plans
Marine Class Inspections

Exact Fuel Consumption (kg)
Fuel Contamination Sensors
Oil Quality Sensors
Oil Condition Sensors
Vibration Sensors
Exhaust Emission Sensors

Including Any Defined System Alerts
https://monitormyvessel.com/

Particle Pal Pro – FS9V3 OLU

Whether on site or in the laboratory, the Portable Particle Pal FS9V2-RH will provide instant cleanliness readings in ISO, SAE, NAS to allow you to fully understand the condition of your lubricants. The system provides readings in ISO:4406 for up to 4, 6, 14 & 21 micron levels for instant comparison to international or national lubricant cleanliness standards. This system also includes a relative humidity (RH%) function providing a clear insight into the level of water in the fuels being tested. A self contained system, complete with integral pump & controlled flow rate.

Fatigue Wear
Cutting Wear
Sliding Wear
Fibres

Phantom Particle Counts

Particle Pal FS9V3

The system includes a relative humidity (RH%) sensor & also a full spectrum Tan Delta holistic oil condition sensor providing remaining oil life. This unit provides portability with a test capability range that would result in unprecendented, on-the-spot insight into the condition of your oil.

Particle Pal Plus – FS9V4 – RH

Using state of the art digital imaging particle counting technology to give reliable ISO counts thar are not affected by air bubbles or phantom particles/oil additives.

The base unit, including RH% functionality comes in a very lightweight (4.5 kg) & rugged portable carry case with very long battery life. The standard unit can handle lubricants up to 320 cSt & can also be used for diesel fuel.

The Particle Pal FS9V4 can have options to include viscosity, density as well as high pressure pump to handle lubricants up to 2,400 cSt.

In addition to recording & eliminating air bubbles, this unit provides ‘root cause’ analysis by identify counts for cutting wear; sliding wear & fatigue wear through shape recognition analysis.

Particle Pal FS9V4

Phantom Particle
Counts

FluidInspectIR® Portable

Protecting your equipment & preventing an ‘oil problem’ becoming a ‘machinery’ problem is critical to keeping reliability up & operating costs down. Using laboratory standard FT Infrared technology, the FluidInspectIR® portable lubricant testing system can get you virtually all laboratory testing parameters, as well as many more you won’t normally get..

Why would you wait for 10+ days when you could get near instant results at your site operation in a digital format (Windows based reporting software) for data logging, trending & analysing. The risks associated with the delay between a sample being taken until you get the results, are very significant.

The Spectrolytic FluidInspectIR® can even be customised for parameter identification such as specific additives per client requirements. It is simple to use & will empower you to get results quickly, to allow you to take any countermeasures when they are needed, without any OPEX or long waiting periods.

FluidInspectIR®
Portable

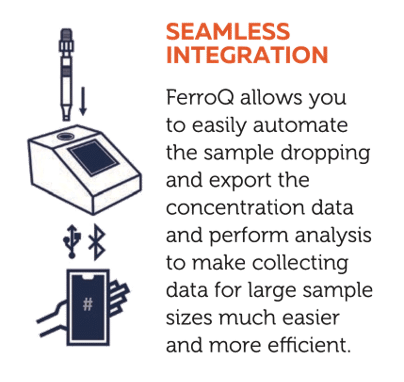

FerroQ Ferrous Wear Analyzer

The FerroQ is a standalone device that analyses a small sample of oil for ferrous debris. The rapid & simple operation accompanied by outstanding sensitivity makes the device a perfect complement to any laboratory oil analysis.

Can be used as a low-cost on-site screening tool to identify if samples require further analysis, or as a standalone wear debris monitoring solution. The wide range & support for Grease Thief vials enables more flexibility & better measurements with more flexible operations.

Sampling

Accurate results in seconds
Bluetooth & USB connectivity
Touch screen display
Only small sample needed
Calibration independent of base fluid
Multiple sized vials

FerroQ Ferrous Wear Analyzer

Mobile Oil Tester

Instantly Test Multiple Oil Samples In-Field & in the Workshop.
The MOT is a complete mobile oil quality test kit built around the Oil Quality Sensor (OQSx). A small sample of any oil type can be instantly tested and its precise quality reported. Ideal for maintenance depots or mobile crews. Proving lubricant quality levels as well as remaining life % levels (see case study below).

Fully Configurable – Any oil type, MOT allows accurate testing of any oil or fuel oil.
Instant Results – Instant diagnosis of potential issues with the ability to store trend data.
Fully Certified – The Oil Quality Sensor (OQSx) is fully certified to international standards.
Portable – MOT is fully portable – ideal for the workshop & for field maintenance crews.

Mobile Oil Tester

Case Study

Patch Test Kit

Patch Test Kit System

Allow the identification of all contamination types as well as provides an ability to estimate contamination levels. Identifying contamination types provides a very critical insight into understanding the root cause of contamination to allow its management & ensure it can be properly addressed.

Contamination Reference Handbook

Patch Test Kit

Varnish Potential Tester

Digital Imaging – This unit provides very clear digital imaging to ensure that any contaminant identification can be recorded for reference
Instant Results – Patch test kit uses low cost patches for testing
Varnish Potential Sensor – Membrane Patch Colorimetry is used to measure the colour of insoluble contaminants which can determine the propensity for lubricating oils to form varnish deposits

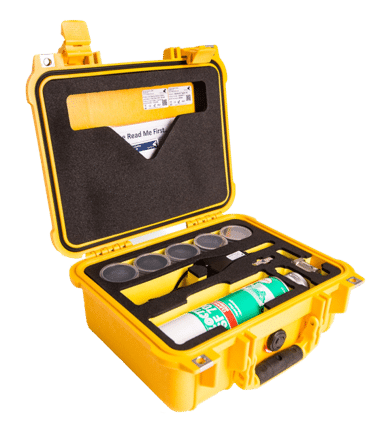

TAN Lube Test Kits

On-Site Test Kit for Quantifying Total Acid Number (TAN)
Oxidation of oil, such as lubricating, hydraulic, pump, & other oils, is the one main cause of mechanical malfunction. These oils can be analysed for total acid number quickly & easily by incorporating Titra-Lube TAN Test kits in your preventative maintenance schedule. Get instant results instead of waiting for expensive & slow laboratory results. On-site & In-situation results match laboratory methods such as ASTM Method D-664.

Aircraft Turbine Oil
Generator Sets
Fixed & Mobile Plant

Tan Test Kits

First Aid✚ For Oils

FluidTek are the exclusive Indonesian distributor for Filtertechnik lubricant testing & cleaning systems. Filtertechnik have an exceptionally wide range of equipment to assist getting the very best life & performance for your lubricants with First Aid for OilsTM approach to their health. This system is focused on delivering considerable cost savings through increasing lube life as well as getting the best from your equipment.

FluidTek sell & fully support the full range of Filtertechnik products with local stock, spare parts & exceptional technical support & client training capability.

Please download the attached catalogue to see the full range of Filtertecknik products.

First Aid For Oils

Hippo Lube Filtration Range

Our Hippo Filters are distributed worldwide & can fit onto a wide range of construction machinery, filtering oil as the machine is running. The systems are simple in design with the filter cartridges very low priced to ensure OPEX is kept to an absolute minimum!

Flow rates of up to 10 l/m (depending on cartridge
High volume dirt holding capacity (up to 2,200 grams/element)
Water removed to below 0.05%
High volume water holding capacity (up to 700 ml/element)
Various cartridges available depending on the level of solid &/or moisture present
Suitable for most oils including kerosene, turbine oils & bioethanol
Can run particulate as well as water removal cartridges

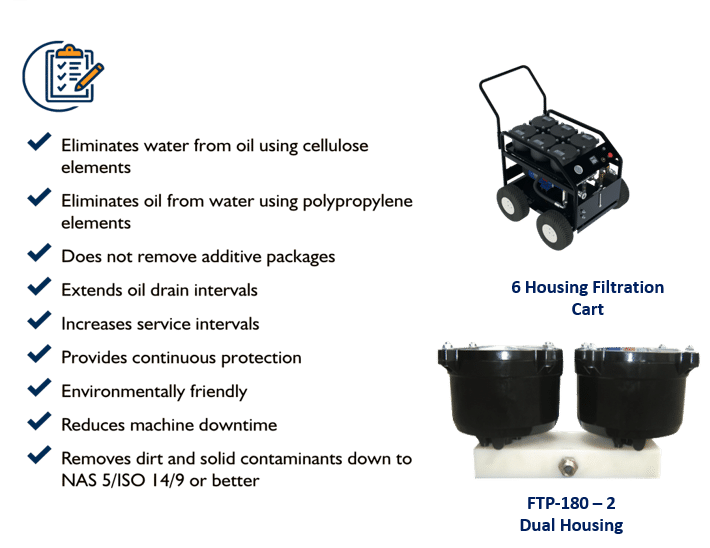

FTP-180 Single Housing

Hippo Filters

Hippo Lube Filtration Systems

Cellulose Element – SDFC (W2) Disc

Solid removal to 2.8 µm
Wide range of oil & fuel compatibility
Economic cartridge option

Hippo Housing with 10 bar max pressure (pot & lid only)

Polypropelene Element – SDFC (W2P)

Cleans oil without removing water content
Ideal for water glycol & fire resistant fluids
Flow rates of up to 10 l/min per cartridge

Particulate & Water Element – WDMW-180

Long life water removal cartridge
Contains Filtasorb water removal media
Ideal for wet environments, marine, paper mills
Flow rate recommendation – 3 l/min per cartridge

Water Removal Performance

BD5000 Kidney Filtration System

Hippo BD5000 portable filtration system with twin filter pump & 10 l/min (configurable to 20 l/min). High capacity (up to 2,200 grams particulate & 700 ml of water per element) & inexpensive filter cartridges. The systems have been proven to extend oil life up to 10 x normal conditions.

Very cost effective particulate & water removal
Particulate filters down to Absolute 2.8 μm (or 1 μm option)
Drastically extend effective life of lubricants – saving money
Filter cartridges priced to save significant costs over time

Suitable for:

Oils
Diesel
Kerosene
Bio-ethanol
Turbine oils
Process fluids
Water based fluids
By-pass filtration systems
Full flow filtration systems

BD 5000

Filter Elements
Cartridge choice of 9” or 14” sizes

1 μm absolute
3 μm absolute
5 μm absolute
10 μm absolute
25 μm absolute
150 μm cleanable
Water removal

SFC 3000

SFC 3000 Portable Filtration Cart

The SFC-3000 is a filtration cart designed to perform superbly within constant industrial or intermittent oil transfer applications. It offers high capacity alongside flexible filter element selection and easy element changeovers.

Extensively used for:

Fixed & Mobile Plant
Plant Hire
Steel Production

Manufacturing
Automotive Industry
Paper Mills
And many more

KLU-01 Kidney Loop Unit

The KLU is a filtration cart designed to perform superbly within constant industrial or intermittent oil transfer applications. It offers high capacity alongside flexible element selection & easy element changeovers. The system is specifically designed to handle high viscous lubricants with it able to filter up to 780 cSt oils. This is achieved through a high pressure (6 bar) pump & a specialist filter cartridge sealing system.

The KLU-01 is a skid mounted oil filtration system, it is fitted with a GK9 3-stack filter housing which uses GeoSeal filter media, the self priming gear pump can deliver contaminated oil up to a very respectable 30 L/min. A Pop-up indicator fitted at the base of the filter housing, will inform the user when the filter media is blocked. The system has 1” BSP connection with C/w Isolation Valves.3 stack elements 10 µm absolute DHC 324 gm

3 stack elements 5 µm absolute DHC 357 gm
3 stack elements 3 µm absolute DHC 345gm
3 stack elements 1 µm absolute DHC 336gm

KLU-01

High Viscosity Lubes up to 780 cSt!

Neptune Lube Dehydration Carts

NDU-2NX – Single Housing

Transportable
Rapidly remove water & particulate
Continuous operation
Up to 1,500 L/h
To cleanliness codes 18/16/13 or less
Complete with all terrain castors
Filtasorb2 water removal filters
Many choices for low cost particulate sock filters
Choices of high efficiency melt blown sock filters

Pressure Differential Sensors

NDU-2NX

NDU-3NX

Neptune Lube Dehydration Carts

NDU-3NX – Dual Housing

Transportable
Rapidly remove free & entrained water
Continuous operation
Up to 3,000 L/h
To cleanliness codes 18/16/13 or less
Complete with all terrain castors
Filtasorb2 water removal filters
Many choices for low cost particulate sock filters
Choices of high efficiency melt blown sock filters

Tubine Oils
Hydraulic Systems
Gearbox Oils
Transformer Oils
Oil Systems

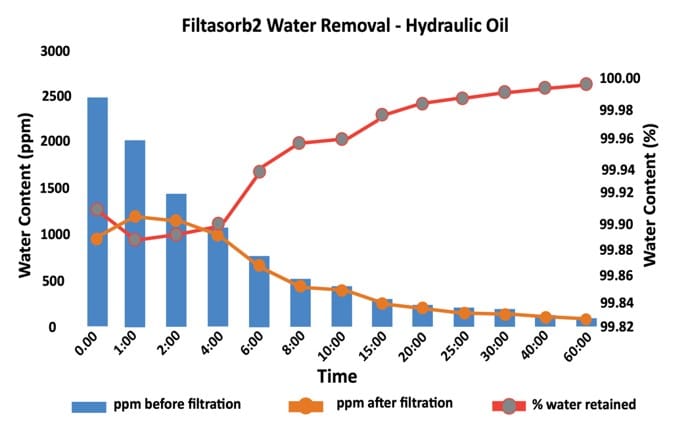

Filtasorb2 Filters

Filtersorb2 is the revolutionary water removal solution for oils, removing water to under 100ppm across an impressive range of flow rates. Filtasorb2 delivers unparalleled performance at an unbeatable price.

Filtrasorb 2 can retain up to 6 litres of water
Flow rates of 5 to 1,000 L/min
Filtration down to 10 micron for particulate
Most cost-effective water removal system available

Filtasorb2 Filters

Transformer Oil Case Study

Varnish Elimination Unit

The service-friendly Varnish Elimination Unit (VEU) is used to prepare mineral oils & is particularly effective at removing oil aging products (varnish) from mineral oils. Varnish takes the form of oil-insoluble aging products which settle in the tank, in valves or in bearings. The can be filterable gels or solid paint-type deposits. There are two size models:

Tanks…..570 – 4,500 litres
Tanks…..850 – 15,000 litres

Features & Benefits

Removal of solid & gel-like oil aging products
Increased operating reliability of the system as a result of fewer deposits in hydraulic valves
Increased oil service life
Available for existing & new systems

VEU-x-10

Varnish Elimination Unit

The VEU series product is used in bypass flow. The removal of the varnish is based on reducing the oil solubility for varnish with subsequent filtration using a combination of heat exchanger with Dimicron® filter element technology.

Applications

Turbine lubrication systems
Plastic Injection Moulding Machines
Industrial Forges & Presses

VEU-x-10

Glacier Lube Centrifuges

Glacier Advance Centrifuge System
Every lubricated surface is continuously exposed to wear particles that limit useful life. Lube centrifuges capture those particles. A power tool, converting wasted energy into longer oil life while greatly extending component overhaul intervals.

Remove abrasives filters miss
Separates by size & density
Pressure powered
May be operated in parallel
OTB remoting fixture
Serviced with simple tools
Essentially – no OPEX!

Use Cases

Crushers given exposure to high levels of dust
Hydraulic fluid exposed to brake dust
Mining heavy equipment e.g. haul trucks with brake filter pressure differential lockout systems
Any high wear machinery that is lubricated

Centrifuge
Overview

ACS 2000

Glacier Lube Centrifuges

Glacier Centrifuge – Cut-away

FluidBag Grease Dispenser

Transferring, storing & dispensing of grease has always been challenging. Typical methods using steel drums open up this key lubricant to a considerable amount of contamination risk, as well as result in extremely high levels of waste. Additionally, disposing of the drums add another environmental challenge to this outdated method of handing grease.

FluidTek can supply, install & support operations to introduce this exceptional product that can take your grease handing to a new level of cleanliness and waste reduction, saving you money. Together with our partners, we can also supply these grease bags ready to install in the unit & can also set up pump systems for either high pressure dispensing (workshops), or high pressure transfer (fill service trucks). Drastically limiting the waste of grease as well as the biodegradable grease bag. make complete sense to both save money as well as help within environmental targets.

FluidBag

Minimum wastage, maximum efficiency!

Lube Storage Tank Breathers

Normally lube tank breathers allow moist air & particulate to flow straight into tanks. Tanks continually breath in moist & dirty air which condenses on the tank’s walls & falls into the lubricant.

FluidTek supply & can install specialist tank breather systems that filter moisture & particulate, keeping lube in tanks both clean & dry!

Applications

All lube storage tanks
Gearboxes or transmission housings
Hydraulic tanks on heavy equipment

Magnetic Suction Separators

Magnetic suction separtors protect downstream components by capturing potentially harmful ferrous particles. FluidTek sell a range of these strainers both stand alone, or enclosed in a housing. This housing can be used either in-line (RF-SKB or KF3-SKB) or as a reservoir-mounted filter (BFT-SKB).

Magnetic Separators

Testing > Analysis > Root Cause >
Solution Strategy

Complete on-site service to take away all of the challenges in receiving, storing, dispensing & quality control of lubricants.

Testing

When new lubricants are received from suppliers
Testing after any filtration, to ensure filtration systems are working effectively
Testing through various stages of ODI periods to assess life-cycle condition
Testing if there is any component or system failure
Testing if any condition monitoring sensor alert
Can provide this service for diesel fuels also

Unlike a laboratory report which would just be a pdf file after 10 or more days, we provide the our digital reports virtually in ‘real-time’.

FluidTek’s On-site Service not only gets you the testing result straight away, but also our team works with our clients to develop ‘root cause’ analysis & then jointly develops mitigation strategies to fix any lubricant problems that have been identified. We can provide nearly every parameter from a laboratory report as well as many more that you don’t get, straight away!

This can be done on a ‘no investment’ basis with the service being based on OPEX service fee.

Please contact our specialist team to discuss this unique & hugely cost reducing service?

Hp/WA 0811 871 7492 or sales@fti.co.id

Drinking Water Microbial Testing

Your 1st Line of Defence 2nd Generation ATP monitoring offers a powerful combination of speed, versatility, portability, & accuracy for microbiological testing in any industry concerned with water. All living cells contain ATP regardless of whether they are bacteria, fungi, or any other type of microbe. As such, its measurement is a direct indication of the microbiological content in your sample. All-inclusive results in minutes provide enhanced monitoring capabilities for superior control of microorganisms in your process.

Water Distribution

In water distribution systems, the bulk of the microorganisms are usually associated with the surfaces (sessile microorganisms) rather than those that are free-floating in the water (planktonic microorganisms). Microbes tend to form thick deposit layers known as biofilms on tank and pipe surfaces in order to establish a favourable ecosystem for growth & for protection against disinfectants. This leads to microbially-induced corrosion (MIC) & many other challenges. The key is the ability to precisely locate contamination hot spots quickly so as to facilitate rapid action.

Quench-Gone Aqueous

Water Treatment

Traditional regulated measurements for microorganisms can only detect a portion of all waterborne microorganisms. On top of that, the technologies behind these test methods can date back to 130 years ago and will take as long as weeks to answer a simple “yes or no” question as to whether or not a specific microorganism is present. During this lag, problems can become exponentially worse.

In addition to health concerns from pathogenic microorganisms, water quality management has significant implications on infrastructure integrity. Membranes, pipelines & storage tanks can all be affected by microbial growth. The best defence against microbial proliferation & premature equipment failure is early detection.

Waste Water Microbial Testing

FluidTek sell & fully support the full range of Filtertechnik products with local stock, spare parts & exceptional technical support & client training capability.

Please download the attached catalogue to see the full range of Filtertecknik products.

Quench-Gone21 Waste Water

Waste Water Treatment

Most operational challenges – bulking, upsets, excessive costs & non-compliance stem from inaccurate measurements of the true, living biomass in your process. Relying on suspended solids measurements to quantify biomass in your process is insufficient because these measurements also count dead microorganisms and inert materials.

This limitation can lead to delayed or missed diagnosis of operational challenges, resulting in high cost of operation &/or poor quality effluent. The solution to these challenges is accurate, real-time microbiological testing results that enable you to save time, optimize operating costs, & manage treatment process risks.

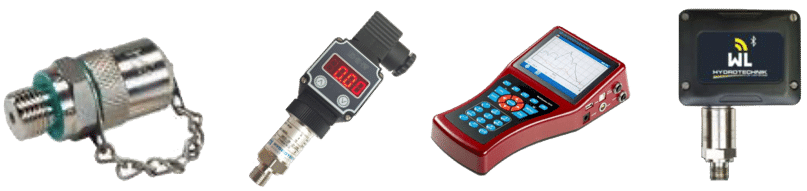

Testing & Measuring Systems

Given the longstanding & successful relationship FluidTek has had with Filtertechnik as their exclusive dealer here in Indonesia, the natural progression was to add their sister company Hydrotechnik’s product line, given the great fit with our fluids focused business. FluidTek now supply, stock & fully support the Hydrotechnik range of products for the Indonesian market.

An innovative mid-sized company that has firmly established itself as one of the leading providers of industrial measuring equipment for high-pressure system diagnostics and condition monitoring – both nationally and internationally. Moreover, we employ over 140 people worldwide as the Hydrotechnik Group and not only operate locations in Germany, but also sales branches in France, Italy, China, and the US.

We provide our customers with unbeatable “Made in Germany” product quality, and our products are manufactured exclusively in Germany. In addition, we are known for cultivating long-term relationships with our customers and offering unrivalled service and solutions for everything having to do with measuring equipment.

HYDROTECHIK
Complete Catalogue

Testing & Measuring Systems

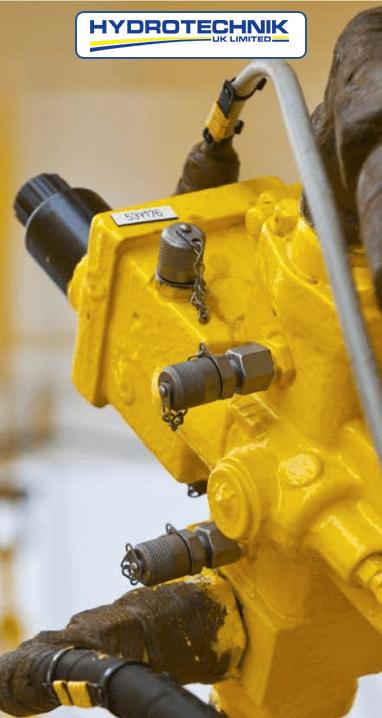

Minimess®

One of the main constants behind the history of Hydrotechnik, was have expertise in everything having to do with hydraulic measuring technology. In fact, the MINIMESS® plug-in coupling featuring a ball check was first launched on the market in 1964, immediately redefining what was possible in the field of pressure measuring technology for hydraulic systems.

And it was no surprise, as the advantages behind the novel development were immediately compelling: Instead of having to open the hydraulic circuit and install a pressure gauge for diagnostic or maintenance activities, the innovation had suddenly made it possible to quickly & safely connect pressure sensors and gauges without any downtime.

These units allow quick & safe access to hydraulic or other systems for diagnostics & maintenance.

Minimess®
Short Form Brochure

Minimess®

ORIGINAL MINIMESS® TEST POINTS
The go-to system access solution for fluid circuit analyses, sampling,
charging, and venting. The p/T version can be used to measure pressures and
temperatures at a single measuring point at the same time.

MINIMESS®

1620 Series

Page 12 – 13

MINIMESS®

1615 Series

Page 15

MINIMESS®

1604 Series

Page 19

MINIMESS®

1620 p/T Series

Page 14

MINIMESS®

1215 Series

Page 16 – 17

Complete Catalogue

Minimess®

ORIGINAL MINIMESS® TEST POINTS – SPECIAL SERIES
Pressures of up to 1,000 bar, immersion depths of up to 5,000 m, and
temperatures as low as -60 °C are simply a matter of course for these high-
performance products. In other words, they are the product of choice for the
most demanding measuring tasks out there.

MINIMESS®

Offshore

Page 20

MINIMESS®

Special fluids

Page 20

MINIMESS®

High pressure

Page 21

MINIMESS®

Deep sea

Page 20

MINIMESS®

Low temperatures

Page 21

Complete Catalogue

Minimess®

ORIGINAL MINIMESS® GAS CHARGING VALVES & ACCESSORIES
Designed to make it easy, fast, and safe to fill, monitor, and empty gas
accumulators and gas-conveying lines

MINIMESS®

1615 Gas charging valve

Page 23

MINIMESS®

Gas charging valve with accumulator adaptor

Page 25

MINIMESS®

Gas charging & testing device with pressure regulator

Page 26

MINIMESS®

1215 Gas charging valve with certified DVGW test point

Page 24

MINIMESS®

Accumulator charging & testing device

Page 26

Complete Catalogue

Minimess®

ADAPTERS WITH ORIGINAL MINIMESS® TEST POINTS
Used to retrofit test points on existing systems. New installations? Combining
measuring points? Not a problem.

MINIMESS®

1620
Test point with DKO fitting

Page 28 – 33

MINIMESS®

Test point
with 900 swivel fitting

Page 38

MINIMESS®

1620 Test point with ORFS or 370 flared fittings

Page 41 – 42

MINIMESS®

Fittings / tee adaptors

Page 34 – 37

MINIMESS®

1620 Bulkhead test point

Page 39 – 40

Complete Catalogue

Minimess®

MINIMESS® GAUGE & ADAPTERS, HOSE LINES, & ACCESSORIES
Connect your pressure gauges and sensors directly to your test point or use
one of our MINIMESS® hose lines. In addition, this group includes hose
materials designed for the MINIMESS® Special Series.

MINIMESS®

Direct pressure gauge & sensor adaptor & 900 option

Page 43 – 45

MINIMESS®

Pressure gauge & sensor adaptors for bulkheads

Page 57

MINIMESS®

Fittings for hose lines

Page 47 – 56

Complete Catalogue

Minimess®

EXPANDED MINIMESS® PORTFOLIO
Special solutions for your technical fluid applications that are designed to
complement our range of traditional MINIMESS® products.

MINIMESS®

Minivalv throttle check valve

Page 58

MINIMESS®

Flat face diagnostic couplings

Page 59

MINIMESS®

Test couplings for air brake systems

Page 59

Complete Catalogue

Testing & Measuring Systems

HySense® Sensors

HySense® Family

Success in the cutting-edge plant & production worlds of Industry 4.0 depends significantly on data quality & system precision. Needless to say, this also means that the success of an industrial measurement depends on the reliability of the corresponding data acquisition. That is where Hydrotechnik sensors come in with their extraordinary quality and reliability.

Technicians, engineers, and skilled workers who commission, operate, maintain, and repair systems and machines need valid data from sound measurements. In fact, this is the only way for them to be able to take the right actions and meet their customers’ expectations. And R&D specialists, such as development and applications engineers in the plant and machine design engineering fields, also benefit from the know-how that goes into our products, which is why they and the aforementioned professionals all appreciate our “Made by Hydrotechnik” high- precision sensors.

These sensors are optimized for use in high-pressure fluid systems and hydraulic systems in particular, but they are also in use in many other areas. And this should come as no surprise, as the products combine a robustness and long life that meet all the requirements involved in continuous use with a solid price–performance ratio. Moreover, our in- house DAkkS-accredited calibration laboratory guarantees maximum accuracy and consistent quality for every single one of our sensors.

HySense® Sensors

Flow Rate

QT – Turbine flow meters
QG – Gear flow meters
QL – Turbine flow meters with integrated throttle valve
QO – Oval gear flow meters

HySense®

QT series

Page 80 – 93

HySense®

QG series

Page 94 – 99

HySense®

QL series

Page 100 – 105

HySense®

QO series

Page 106 – 107

Complete Catalogue

HySense® Sensors

Pressure

PR – Pressure sensors
PS/ MultiEPC – Pressure switches

RP 1xx

Page 112 – 121

PS280

Page 128 – 129

PR 126

Page 116

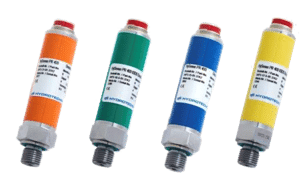

PR 400

Page 122 – 123

PR 509

Page 124 – 125

MultiEPC

Page 126 – 127

Analogue pressure gauges

Page 130 – 132

Digital pressure gauges

Page 133 – 134

Complete Catalogue

HySense® Sensors

Temperature

TE – Temperature sensors
TP – Temperature & pressure sensors

TE 200

Page 138

TE 3xx

Page 140 – 142

PR 400

Page 143

TP 180

Page 144 – 145

Complete Catalogue

HySense® Sensors

Oil Condition

CL – Level sensors
CM- Moisture sensors
CV – Viscosity sensors
CX – Service measuring kit
CW – Wear sensors

CM 100

Page 150 – 151

CX 197

Page 154 – 155

CL 1xx

Page 148 – 149

CV 100

Page 152 – 153

Complete Catalogue

HySense® Sensors

FORCE & TORQUE

FO – Force sensors
TQ – Torque sensors

FO 200

Page 158 – 159

FO 300

Page 160 – 161

TQ 100

Page 162 – 163

Complete Catalogue

HySense® Sensors

SPEED, POSITION, VIBRATION, TRANSDUCERS

RS – Speed sensors
PO – Position sensors
VB – Vibration sensors
SC – Signal converter

RS 5xx

Page 167 – 168

VB 110

Page 171 – 172

RS 110

Page 164 – 165

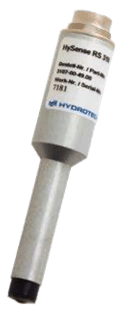

RS 3xx

Page 166

PO 180

Page 169 – 170

Complete Catalogue

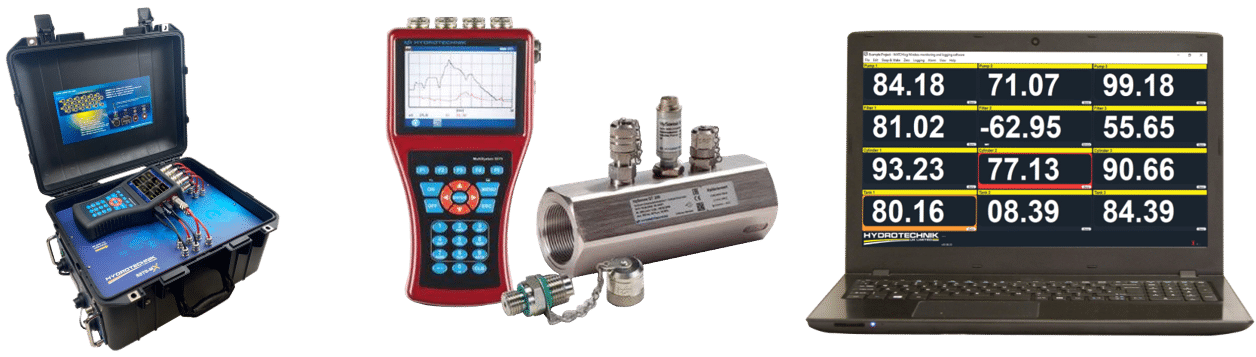

Testing & Measuring Systems

Measuring Systems

Trendsetting details & innovative solutions

As you well know, you need pressure, temperature, and volumetric flow rate measurements in order to monitor, control, and diagnose your pressurized systems. Moreover, by keeping a record of your measurement data, you can obtain a basis for analyzing measured data.

With their product characteristics, Hydrotechnik handheld measuring devices are sure to provide you with the functions you need for your condition monitoring applications when used in combination with our professional software. Moreover, our measuring systems are able to record stationary and mobile sensor data with three to 42 channels. In addition, continuous and event-based measurements (i.e., the measurement starts only after a specific reading is reached or a specific event occurs) can be configured, and our measuring systems feature the option of conveniently and safely transmitting measurements wirelessly in real time.

Hydrotechnik measuring systems are also designed to enable you to graphically prepare your measurements, generate measurement reports, and reproduce test and measuring specifications without any programming skills. One of the main characteristics is the devices’ user friendliness and flexibility, which make it possible to work with virtually any industrial measurement variable. From the entry-level model to our mobile all-rounder, Hydrotechnik measuring devices are designed to be universally easy to use.

Hydraulic Test & Data Acquisition Equipment

Measuring Systems

MultiHandy 2025

Page 182 – 185

Are you interested in using high-precision measurements for complex technical systems instead of the old analog measurements? The make the switch to Hydrotechnik digital measuring technology & see how your measurements become more accurate & reliable than ever before!

Easy & Fast: Connect, measure, document
Flexible & Versatile: Current, voltage, & frequency inputs for all industrial sensors
Digital & Powerful: Test probes can be immediately detected & analysed
Precise & Enduring: Legally required documentation can be documented
Ready to Go: Fast data transmission & intuitive report generation
3 channels/5 recordings with 120K readings per recording

Complete Catalogue

Are you looking for a measuring device that will enable you to monitor small to medium-sized systems in harsh environments?

We have the answer for you: The MH3020!

With three input channels, a heavy-duty aluminum housing, and a USB port, the MultiHandy 3020 reliably and cost-effectively meets the essential requirements for the mobile acquisition of measurement data in harsh environments.

Versatile: Two analog & one frequency input channel
User Friendly: Large buttons, backlit display
Field Ready: Heavy-duty construction with aluminium housing
Large Memory: For approx. 1 million readings per recording
High Capacity Battery: For measuring the whole day without having to stop & charge

MultiHandy 3020

Page 188 – 191

Measuring Systems

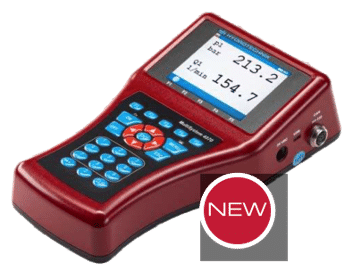

MultSystem 4070

Page 192 – 197

Do you need measurements other than just pressure, temperature, and ﬂow rate? Do you want to integrate data for multiple measurements or entire test sequences into your recording in a user-friendly and cost-effective manner? Do you want to know how your measurements are doing at any time and from anywhere? The completely new MultiSystem 4070 is the most efﬁcient way to get started with the next level of measurement data recording!

New Menu Structure: ICON graphical user interface
Unbeatable Connectivity: CAN bus, Bluetooth, LAN
Viscosity-compensated Volumetric Flow Measurements: HySense® QT 600
Oil Condition Monitoring: HySense® CX 197, CV100, CM 100, CL 100, CW 100, & Patrick
Maximum Effectiveness: Lithium-ion battery technology; runtime => 10 h
Fast Charging Function: => 3 h

MultSystem 5070

Page 198 – 203

Do your tasks require maximum performance and capacity when it comes to mobile measurement data recording? Do you need to record and visualize a large number of measuring channels and highly complex test sequences precisely, including in danger zones? The MultiSystem 5070, combined with professional software, is the perfect solution for recording and analyzing your readings regardless of the application. To put it simply, it is essential for every ﬂuid specialist and a valuable tool for professional service technicians. Wireless data transmission via Bluetooth* minimizes the time spent in danger zones, and complex measuring tasks can be safely and efﬁciently recorded with predeﬁned test sequences. Moreover, favorites can be freely chosen and screenshots can be saved, ensuring maximum ease of use.

Precise Representation: 5” sunlight-readable colour display
User Friendly: ICON graphical user interface
Maximum Memory: 500 recordings with up to 6 million readings per recording
2 Separate CAN Interfaces: Incl. wake-up / trigger function
Viscosity-compensated Volumetric Flow Measurements: HySense® QT 600
Oil Condition Monitoring: HySense® CX 197, CV100, CM 100, CL 100, CW 100, & Patrick

Complete Catalogue

Measuring Systems

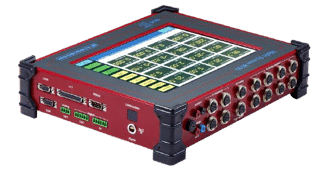

MultSystem 8050

Page 204 – 207

New Menu Structure: ICON graphical user interface
Unbeatable Connectivity: CAN bus, Bluetooth, LAN
Viscosity-compensated Volumetric Flow Measurements: HySense® QT 600
Oil Condition Monitoring: HySense® CX 197, CV100, CM 100, CL 100, CW 100, & Patrick
Maximum Effectiveness: Lithium-ion battery technology; runtime => 10 h
Fast Charging Function: => 3 h

SEG 830

Page 208 – 209

Precise Representation: 5” sunlight-readable colour display
User Friendly: ICON graphical user interface
Maximum Memory: 500 recordings with up to 6 million readings per recording
2 Separate CAN Interfaces: Incl. wake-up / trigger function
Viscosity-compensated Volumetric Flow Measurements: HySense® QT 600
Oil Condition Monitoring: HySense® CX 197, CV100, CM 100, CL 100, CW 100, & Patrick

Complete Catalogue

Measuring Systems

HYDROcom6

Page 214

In addition to professional measuring equipment, comprehensive measuring tasks require powerful software for processing recorded data. And HYDROcom6 Base, which is available for free, is designed to provide you with a large part of the functionalities you need to do just that.

Meanwhile, HYDROcom6 Advanced/Professional can be used not only to visualize real-time readings, but also download, visualize, analyze, process, and present existing measurement data. And to generate your own measurement reports conﬁgured according to your speciﬁc needs, of course.

Fast Data Transfers: Transfer, import & export data
Fast Data Processing: Evaluate, analyse & process data
Present Measurement Results: Chart, tables, bar charts
Digital Documentation: Test reports, measurement reports, QA reports

HYDROlink6

Page 215

Sometimes you just need to be elsewhere! That is why Hydrolink6 makes it possible to completely conﬁgure your measuring systems with your PC or laptop regardless of whether you are on-site or on the go. Take advantage of the highly effective remote access setup option for all measuring device/ channel / memory parameters and implement whole CANopen databases in order to make your work even more efﬁcient. Create highly complex test sequences for desktop and measuring system applications with the help of the new HYDROlink6 Professional. Use a single click to generate personalized measurement reports, or use the simple real-time visualization / measurement function and the broad selection of associated layout options.

Efficient measuring device / channel / memory configuration
Full control of all functions via remote measuring system control
Implement CANopen databases
Easily generate complex test sequences (HL6 PRO)
Real-time visualization, incl. a wide selection of layout options

Complete Catalogue

Measuring Systems

HYDROrun

Page 216

Do you want to reliably visualize highly complex test sequences? Are you interested in minimizing measurement errors with predeﬁned test plans?

If so, you can use HYDROrun or HYDROrun lite to visualize test sequences (generated with HYDROlink6 Professional) in a user-friendly manner. Depending on the software version, you can get a license for your existing measuring system e.g. MS4070/MS5070 or a desktop version.

Reliably visualize complex test sequences
Minimize errors with predefined test plans
Available as measuring system & desktop version

HYDROcentre

Page 217

Efficient measuring device / channel / memory configuration
Full control of all functions via remote measuring system control
Implement CANopen databases
Easily generate complex test sequences (HL6 PRO)
Real-time visualization, incl. a wide selection of layout options

Complete Catalogue

Testing & Measuring Systems

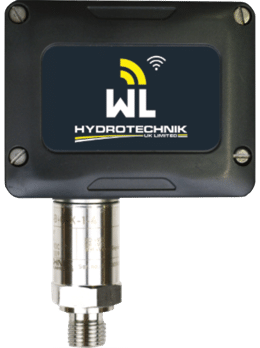

Watchlog Range

THE WATCHLOG RANGE

USB, BLUETOOTH, MEDIUM & LONG RANGE WIRELESS SENSORS & SOFTWARE PACKAGES

WATCHLOG represents a huge step in the provision of a secure point to poin USB & wireless transmission of sensor signals.

Watchlog Range Brochure

Watchlog USB is a new generation of sensors and datalogging solutions from Hydrotechnik UK using our Watchlog USB dual pressure & temperature sensors with transmission rates of up to 500 times per second.

Watchlog Bluetooth® is a new generation of short range wireless measurement of pressures, designed to work with iOS & Android mobile devices as well as Windows tablets & PC’s.

The Watchlog Wireless sensor system is our short to medium (up to 1.6km) range wireless monitoring option for up to 60 sensors at one time. Watchlog wireless is designed for pressure, temperature, level or flow sensors in applications where cabled sensors or power are not possible.

Watchlog Pro & Watchlog Vision has been developed to support wireless transmission of a huge range of sensors and signals over longer distances (up to 5km). Up to 60 sensors can transmit to one receiver which includes oil life, pressure/differential pressure, level and temperature, flow, force, CANbus and much more, for local, remote and cloud management.

Watchlog Range

Watchlog Pro & Watchlog Vision have been developed to support wireless transmission of a huge range of sensors & signals over longer distances (up to 5km). Up to 60 sensors can transmit to one receiver which includes oil life, pressure/differential, pressure, level, temperature, flow, force, CANbus & much more. Battery or external powered transmitters available. Data can be integrated to multiple signal gateways for wider integration possibilities such as PLC’s, BMS, Scada & cloud platformas.

Cloud enabled systems allow for graphical visuals with datalogging downloadable via csv file, customisable alarm settings, text & email alert features & min/max readings.

Testing & Measuring Systems

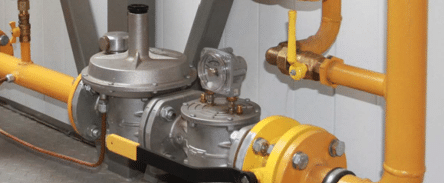

Service & Calibration

In order for readings to be accurate and reliable and yield solid analyses, measuring devices & sensors need to be precisely adjusted and calibrated.

For us at FluidTek, our customer relationships do not simply end when we sell a product. Instead, we offer professional, reliable, and high-quality maintenance, repair, and calibration services designed to help you maintain your product’s value. These services are not just limited to Hydrotechnik products, but can also cover our Filtertechnik & other products.

Testing & Measuring Systems

Service & Calibration

With regular high-quality maintenance, you can rest assured knowing that your sensors and measuring devices are working perfectly and are delivering meaningful measurement results. We are experts at checking sensors and measuring devices as quickly as possible so as to minimize downtimes.

Repairs

In the unlikely event that your equipment experiences a problem, however, we will repair your sensor or device reliably, quickly, and cost-effectively.

Verification

FluidTek are able to provide verification services for the various measuring devices & sensors in the Hydrotechnik range. Additionally, if out of calibration, we can provide some options to have them calibrated or adjusted through Hydrotechnik directly. Verifying/Calibrating measuring devices & sensor on a regular basis is essential & a prerequisite for accurate & realiable measurement.
